          Metal Processing - Lathes

          Mašinski list: Strugari


          Center Lathe

          Rabljeni tokarilice Središnji tokarilica HUVEMA CU 580M VAC x 1000


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010066 · Center Lathe

          HUVEMA - CU 580M VAC x 1000 - - neu -

          Technical details
          turning diameter over bed 580 mm︱turning diameter over slide rest 380 mm︱turning length 1000 mm︱spindle bore 72 mm︱turning dia. in gap 780 mm︱spindle taper Größe 8, DIN 55027 ︱spindle turning speed - stepless 20 -2000 U/min︱feeds - longitudinal 0,059 - 1,646 mm/U︱thread - mm pitch 0,2 - 14 mm︱thread - inch 2 - 112 Gang / inch.︱tailstock quill diameter 75 mm︱tailstock quill taper metric MK 5 ︱tailstock quill stroke 180 mm︱max. workpiece weight between centres 800 kg︱voltage 400 V / 50 Hz︱total power requirement 7,5 kW︱weight of the machine ca. 2,8 t︱dimensions of the machine ca. 2,9 x 1,2 x 1,5 m︱
          • stepless adjustable turning speed via frequency converter, digital display,
            turning diameter over bed 580 mm
            turning diameter over slide rest 380 mm
            turning length 1000 mm
            spindle bore 72 mm
            turning dia. in gap 780 mm
            spindle taper Größe 8, DIN 55027
            spindle turning speed - stepless 20 -2000 U/min
            feeds - longitudinal 0,059 - 1,646 mm/U
            thread - mm pitch 0,2 - 14 mm
            thread - inch 2 - 112 Gang / inch.
            tailstock quill diameter 75 mm
            tailstock quill taper metric MK 5
            tailstock quill stroke 180 mm
            max. workpiece weight between ce. 800 kg
            voltage 400 V / 50 Hz
            total power requirement 7,5 kW
            weight of the machine ca. 2,8 t
            dimensions of the machine ca. 2,9 x 1,2 x 1,5 m
            Description :
            • stepless adjustable turning speed via frequency converter, digital display,

          Datasheet
          Request / Contact
          rabljeni tokarilice sa srednjim tokarilicama HUVEMA CU 580M VAC


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010053 · Center Lathe

          HUVEMA - CU 580M VAC - - neu -

          Technical details
          turning diameter over bed 580 mm︱turning diameter over slide rest 380 mm︱turning length 2000 mm︱spindle bore 72 mm︱turning dia. in gap 780 mm︱spindle taper Größe 8, DIN 55027 ︱spindle turning speed - stepless 25-200 / 200-1600 U/min︱feeds - longitudinal 0,059 - 1,646 mm/U︱thread - mm pitch 0,2 - 14 mm︱thread - inch 2 - 112 Gang / inch.︱tailstock quill diameter 75 mm︱tailstock quill taper metric MK 5 ︱tailstock quill stroke 180 mm︱max. workpiece weight between centres 800 kg︱voltage 400 V / 50 Hz︱total power requirement 7,5 kW︱weight of the machine ca. 3,1 t︱dimensions of the machine ca. 2,9 x 1,2 x 1,5 m︱
          • stepless adjustable turning speed via frequency converter, digital display, • 2-axis digital display, • coolant, foot brake, halogen lamp, • 3- jaw chuck, Ø 300 mm, 4- jaw chuck, • fixed and live steady, • quick changing tool holder with 3 boxes
            turning diameter over bed 580 mm
            turning diameter over slide rest 380 mm
            turning length 2000 mm
            spindle bore 72 mm
            turning dia. in gap 780 mm
            spindle taper Größe 8, DIN 55027
            spindle turning speed - stepless 25-200 / 200-1600 U/min
            feeds - longitudinal 0,059 - 1,646 mm/U
            thread - mm pitch 0,2 - 14 mm
            thread - inch 2 - 112 Gang / inch.
            tailstock quill diameter 75 mm
            tailstock quill taper metric MK 5
            tailstock quill stroke 180 mm
            max. workpiece weight between ce. 800 kg
            voltage 400 V / 50 Hz
            total power requirement 7,5 kW
            weight of the machine ca. 3,1 t
            dimensions of the machine ca. 2,9 x 1,2 x 1,5 m
            Description :
            • stepless adjustable turning speed via frequency converter, digital display,
            • 2-axis digital display,
            • coolant, foot brake, halogen lamp,
            • 3- jaw chuck, Ø 300 mm, 4- jaw chuck,
            • fixed and live steady,
            • quick changing tool holder with 3 boxes
          Datasheet
          Request / Contact
          Rabljeni tokarilice Središnji tokarilica HUVEMA CU 580M VAC x 1000


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-01022 · Center Lathe

          HUVEMA - CU 580M VAC x 1000 - - neu -

          Technical details
          turning diameter over bed 580 mm︱turning diameter over slide rest 380 mm︱turning length 1000 mm︱spindle bore 72 mm︱turning dia. in gap 780 mm︱spindle taper Größe 8, DIN 55027 ︱spindle turning speed - stepless 20 -2000 U/min︱feeds - longitudinal 0,059 - 1,646 mm/U︱thread - mm pitch 0,2 - 14 mm︱thread - inch 2 - 112 Gang / inch.︱tailstock quill diameter 75 mm︱tailstock quill taper metric MK 5 ︱tailstock quill stroke 180 mm︱max. workpiece weight between centres 800 kg︱voltage 400 V / 50 Hz︱total power requirement 7,5 kW︱weight of the machine ca. 2,8 t︱dimensions of the machine ca. 2,9 x 1,2 x 1,5 m︱
          • stepless adjustable turning speed via frequency converter, digital display,
            turning diameter over bed 580 mm
            turning diameter over slide rest 380 mm
            turning length 1000 mm
            spindle bore 72 mm
            turning dia. in gap 780 mm
            spindle taper Größe 8, DIN 55027
            spindle turning speed - stepless 20 -2000 U/min
            feeds - longitudinal 0,059 - 1,646 mm/U
            thread - mm pitch 0,2 - 14 mm
            thread - inch 2 - 112 Gang / inch.
            tailstock quill diameter 75 mm
            tailstock quill taper metric MK 5
            tailstock quill stroke 180 mm
            max. workpiece weight between ce. 800 kg
            voltage 400 V / 50 Hz
            total power requirement 7,5 kW
            weight of the machine ca. 2,8 t
            dimensions of the machine ca. 2,9 x 1,2 x 1,5 m
            Description :
            • stepless adjustable turning speed via frequency converter, digital display,

          Datasheet
          Request / Contact
          polovne tokarilice Središnje struge HUVEMA HU 360 x 1000 VAC Topline


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011511 · Center Lathe

          HUVEMA - HU 360 x 1000 VAC Topline - - 2020 -

          Technical details
          turning diameter 360 mm︱turning length 1000 mm︱turning dia. over face-slide 220 mm︱spindle bore 38 mm︱metrical thread cutting 0,4 - 7 mm︱threading WHITWORTH 4 - 56 TPI︱tailstock travel 110 mm︱face slide travel 170 mm︱upper slide-adjustment 165 mm︱longitudinal feeds: 0,067 - 1,485 mm︱ 40 ︱spindle turning speed - stepless 30 - 2200 (2) U/min︱ 515 mm︱diameter of quill 45 mm︱face feeds 0,033 - 0,742 mm︱total power requirement 2,5 kW︱weight of the machine ca. 750 kg︱dimensions of the machine ca. 1850 x 670 x 1500 mm︱
            turning diameter 360 mm
            turning length 1000 mm
            turning dia. over face-slide 220 mm
            spindle bore 38 mm
            metrical thread cutting 0,4 - 7 mm
            threading WHITWORTH 4 - 56 TPI
            tailstock travel 110 mm
            face slide travel 170 mm
            upper slide-adjustment 165 mm
            longitudinal feeds: 0,067 - 1,485 mm
            40
            spindle turning speed - stepless 30 - 2200 (2) U/min
            515 mm
            diameter of quill 45 mm
            face feeds 0,033 - 0,742 mm
            total power requirement 2,5 kW
            weight of the machine ca. 750 kg
            dimensions of the machine ca. 1850 x 670 x 1500 mm
          Datasheet
          Request / Contact
          polovne tokarilice Središnje struge HUVEMA HU 1010 BNG 4 SINO


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011510 · Center Lathe

          HUVEMA - HU 1010 BNG 4 SINO - - 2020 -

          Technical details
          turning diameter 330 mm︱turning length 1000 mm︱turning dia. over face-slide 198 mm︱turning dia. in gap 476 mm︱spindle bore 36 mm︱metrical thread cutting 0,4 - 3 mm︱threading WHITWORTH 56 - 4 TPI︱tailstock travel 95 mm︱face slide travel 160 mm︱number of spindle speeds 70 - 2000 (8) U/min︱upper slide-adjustment 68 mm︱longitudinal feeds: 0,02 - 2,7 mm/U︱total power requirement 1,5 mm︱weight of the machine ca. 600 kg︱dimensions of the machine ca. 1850 x 670 x 1500 mm︱
            turning diameter 330 mm
            turning length 1000 mm
            turning dia. over face-slide 198 mm
            turning dia. in gap 476 mm
            spindle bore 36 mm
            metrical thread cutting 0,4 - 3 mm
            threading WHITWORTH 56 - 4 TPI
            tailstock travel 95 mm
            face slide travel 160 mm
            number of spindle speeds 70 - 2000 (8) U/min
            upper slide-adjustment 68 mm
            longitudinal feeds: 0,02 - 2,7 mm/U
            total power requirement 1,5 mm
            weight of the machine ca. 600 kg
            dimensions of the machine ca. 1850 x 670 x 1500 mm
          Datasheet
          Request / Contact
          polovne tokarilice Središnje struge HUVEMA HU 360 x 760 VAC Topline


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011514 · Center Lathe

          HUVEMA - HU 360 x 760 VAC Topline - - 2020 -

          Technical details
          turning diameter over bed 360 mm︱turning diameter over slide rest 220 mm︱turning length 760 mm︱turning dia. in gap 515 mm︱voltage 400 V︱spindle bore 38 mm︱spindle turning speed - stepless 30-405 / 165-2200 U/min︱number of feeds 40 ︱longitudinal feeds: 0,067 - 1,485 mm/U︱face feeds 0,033 - 0,742 mm/U︱face slide travel 170 mm︱thread - mm pitch 0,4 - 7,0 mm︱thread - inch 8 - 120 inch.︱adjustment of table 165 mm︱total power requirement 2,5 kW︱weight of the machine ca. 0,75 t︱
            turning diameter over bed 360 mm
            turning diameter over slide rest 220 mm
            turning length 760 mm
            turning dia. in gap 515 mm
            voltage 400 V
            spindle bore 38 mm
            spindle turning speed - stepless 30-405 / 165-2200 U/min
            number of feeds 40
            longitudinal feeds: 0,067 - 1,485 mm/U
            face feeds 0,033 - 0,742 mm/U
            face slide travel 170 mm
            thread - mm pitch 0,4 - 7,0 mm
            thread - inch 8 - 120 inch.
            adjustment of table 165 mm
            total power requirement 2,5 kW
            weight of the machine ca. 0,75 t
          Datasheet
          Request / Contact
          rabljeni tokarilice Središnji strug HUVEMA HU 410 x 1000 VAC


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011515 · Center Lathe

          HUVEMA - HU 410 x 1000 VAC - - 2020 -

          Technical details
          turning diameter over bed 410 mm︱turning diameter over slide rest 255 mm︱turning length 1000 mm︱turning dia. in gap 580 mm︱spindle bore 52 mm︱spindle turning speed range 2n / 30 - 3000 U/min︱spindle taper MK6, Camlock D1-6 ︱travel of cross-slide 225 mm︱number of feeds 17 ︱longitudinal feeds: 0,05 - 1,7 mm/U︱Whitworth-thread 45 / 72 - 2 TPI︱pitch in mm 42 / 0.2-14 mm︱pitch in module 18 / 0.3 - 3.5 MP︱tailstock quill diameter 50 mm︱tailstock quill stroke 120 mm︱digital readout Newall ︱3-jaw-chuck diameter 200 mm︱4-jaw-chuck diameter 300 mm︱centers 2 x MK4 ︱set of change wheels Set
          A comprehensive range of quality centre lathes characterised by wide versatility, high accuracy and extremely rigid construction. A wide range of accessories are included as standard on the machines, which include variable speed and a Newall digital readout. The machines are also fitted with a multi-fix quick change tool post and interlock chuck and saddle guards as standard, the machines fully conform to CE regulations. 3 jaw chuck 4 jaw chuck variable speed, 2 steps European protective cover fixed and travelling steady halogen machine light solid cast iron base
            turning diameter over bed 410 mm
            turning diameter over slide rest 255 mm
            turning length 1000 mm
            turning dia. in gap 580 mm
            spindle bore 52 mm
            spindle turning speed range 2n / 30 - 3000 U/min
            spindle taper MK6, Camlock D1-6
            travel of cross-slide 225 mm
            number of feeds 17
            longitudinal feeds: 0,05 - 1,7 mm/U
            Whitworth-thread 45 / 72 - 2 TPI
            pitch in mm 42 / 0.2-14 mm
            pitch in module 18 / 0.3 - 3.5 MP
            tailstock quill diameter 50 mm
            tailstock quill stroke 120 mm
            digital readout Newall
            3-jaw-chuck diameter 200 mm
            4-jaw-chuck diameter 300 mm
            centers 2 x MK4
            set of change wheels Set
            Description :
            A comprehensive range of quality centre lathes characterised by wide versatility,
            high accuracy and extremely rigid construction. A wide range of accessories are
            included as standard on the machines, which include variable speed and a Newall
            digital readout. The machines are also fitted with a multi-fix quick change tool
            post and interlock chuck and saddle guards as standard, the machines fully
            conform to CE regulations.

            3 jaw chuck
            4 jaw chuck
            variable speed, 2 steps
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          rabljeni tokarilice Središnji strug HUVEMA HU 460 x 1000 NG


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011517 · Center Lathe

          HUVEMA - HU 460 x 1000 NG - - 2020 -

          Technical details
          turning diameter over bed 460 mm︱turning diameter over slide rest 274 mm︱turning length 1000/1500/2000 mm︱spindle bore 58 mm︱spindle turning speed range 25 - 2000 U/min︱turning dia. in gap 690 mm︱metric threading 41 / 0,1 - 14 mm︱thread - inch 60 / 2 - 112 inch.︱thread - module 34 / 0,1 - 7 mm︱Whitworth-thread 60 / 2 - 112 TPI︱adjustment of the upper slide 140 mm︱dia. of quill 60 mm︱quill stroke 120 mm︱total power requirement 5,5 kW︱weight of the machine ca. 1,7 / 2,0 t︱dimensions of the machine ca. 2,2 x 1,0 x 1,3 m︱
          A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 jaw chuck 4 jaw chuck Newall digital readout European protective cover fixed and travelling steady halogen machine light solid cast iron base
            turning diameter over bed 460 mm
            turning diameter over slide rest 274 mm
            turning length 1000/1500/2000 mm
            spindle bore 58 mm
            spindle turning speed range 25 - 2000 U/min
            turning dia. in gap 690 mm
            metric threading 41 / 0,1 - 14 mm
            thread - inch 60 / 2 - 112 inch.
            thread - module 34 / 0,1 - 7 mm
            Whitworth-thread 60 / 2 - 112 TPI
            adjustment of the upper slide 140 mm
            dia. of quill 60 mm
            quill stroke 120 mm
            total power requirement 5,5 kW
            weight of the machine ca. 1,7 / 2,0 t
            dimensions of the machine ca. 2,2 x 1,0 x 1,3 m
            Description :
            A comprehensive range of quality centre lathes characterised by wide
            versatility,high accuracy and extremely rigid construction. The machines are well equipped
            with a multi-fix quick change tool post and 2-axis Newall digital readout fitted
            as standard and a variable speed option is available. Huvema lathes fully
            conform to CE regulations. Also available in: 1,5m


            3 jaw chuck
            4 jaw chuck
            Newall digital readout
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          rabljeni tokarilice Središnji strug HUVEMA HU 460 x 1000 VAC


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011518 · Center Lathe

          HUVEMA - HU 460 x 1000 VAC - - 2020 -

          Technical details
          turning diameter over bed 460 mm︱turning diameter over slide rest 274 mm︱turning length 1000/1500/2000 mm︱spindle bore 58 mm︱spindle turning speed range 25 - 2000 U/min︱turning dia. in gap 690 mm︱metric threading 41 / 0,1 - 14 mm︱thread - inch 60 / 2 - 112 inch.︱thread - module 34 / 0,1 - 7 mm︱Whitworth-thread 60 / 2 - 112 TPI︱adjustment of the upper slide 140 mm︱dia. of quill 60 mm︱quill stroke 120 mm︱bed width 300 mm︱number of feeds 42 ︱longitudinal feeds: 0,031 - 1,7 mm/U︱face slide travel 285 mm︱total power requirement 5,5 kW︱weight of the machine ca. 1,7 / 2,0 t︱dimensions of the machine ca. 2,2 x 1,0 x 1,3 m︱
          A comprehensive range of quality centre lathes characterised by wide versatility, high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout. With variable speed. Huvema lathes fully conform to CE regulations. Also available in: 1,5m and 2m. 3 jaw chuck 4 jaw chuck variable speed, 2 steps Newall digital readout European protective cover fixed and travelling steady halogen machine light solid cast iron base
            turning diameter over bed 460 mm
            turning diameter over slide rest 274 mm
            turning length 1000/1500/2000 mm
            spindle bore 58 mm
            spindle turning speed range 25 - 2000 U/min
            turning dia. in gap 690 mm
            metric threading 41 / 0,1 - 14 mm
            thread - inch 60 / 2 - 112 inch.
            thread - module 34 / 0,1 - 7 mm
            Whitworth-thread 60 / 2 - 112 TPI
            adjustment of the upper slide 140 mm
            dia. of quill 60 mm
            quill stroke 120 mm
            bed width 300 mm
            number of feeds 42
            longitudinal feeds: 0,031 - 1,7 mm/U
            face slide travel 285 mm
            total power requirement 5,5 kW
            weight of the machine ca. 1,7 / 2,0 t
            dimensions of the machine ca. 2,2 x 1,0 x 1,3 m
            Description :
            A comprehensive range of quality centre lathes characterised by wide
            versatility, high accuracy and extremely rigid construction. The machines are
            well equipped with a multi-fix quick change tool post and 2-axis Newall digital
            readout. With variable speed. Huvema lathes fully conform to CE regulations.
            Also available in: 1,5m and 2m.

            3 jaw chuck
            4 jaw chuck
            variable speed, 2 steps
            Newall digital readout
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          rabljeni tokarilice Središnji strug HUVEMA HU 460 x 2000 VAC


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011529 · Center Lathe

          HUVEMA - HU 460 x 2000 VAC - - 2020 -

          Technical details
          turning diameter over bed 460 mm︱turning diameter over slide rest 274 mm︱turning length 2000 mm︱spindle bore 58 mm︱spindle turning speed range 25 - 2000 U/min︱turning dia. in gap 690 mm︱metric threading 41 / 0,1 - 14 mm︱thread - inch 60 / 2 - 112 inch.︱thread - module 34 / 0,1 - 7 mm︱Whitworth-thread 60 / 2 - 112 TPI︱adjustment of the upper slide 140 mm︱dia. of quill 60 mm︱quill stroke 120 mm︱bed width 300 mm︱number of feeds 42 ︱longitudinal feeds: 0,031 - 1,7 mm/U︱face slide travel 285 mm︱total power requirement 5,5 kW︱weight of the machine ca. 1,72 t︱dimensions of the machine ca. 3,2 x 1,0 x 1,3 m︱
          A comprehensive range of quality centre lathes characterised by wide versatility, high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout. With variable speed. Huvema lathes fully conform to CE regulations. Also available in: 1,5m and 2m. 3 jaw chuck 4 jaw chuck variable speed, 2 steps Newall digital readout European protective cover fixed and travelling steady halogen machine light solid cast iron base
            turning diameter over bed 460 mm
            turning diameter over slide rest 274 mm
            turning length 2000 mm
            spindle bore 58 mm
            spindle turning speed range 25 - 2000 U/min
            turning dia. in gap 690 mm
            metric threading 41 / 0,1 - 14 mm
            thread - inch 60 / 2 - 112 inch.
            thread - module 34 / 0,1 - 7 mm
            Whitworth-thread 60 / 2 - 112 TPI
            adjustment of the upper slide 140 mm
            dia. of quill 60 mm
            quill stroke 120 mm
            bed width 300 mm
            number of feeds 42
            longitudinal feeds: 0,031 - 1,7 mm/U
            face slide travel 285 mm
            total power requirement 5,5 kW
            weight of the machine ca. 1,72 t
            dimensions of the machine ca. 3,2 x 1,0 x 1,3 m
            Description :
            A comprehensive range of quality centre lathes characterised by wide
            versatility, high accuracy and extremely rigid construction. The machines are
            well equipped with a multi-fix quick change tool post and 2-axis Newall digital
            readout. With variable speed. Huvema lathes fully conform to CE regulations.
            Also available in: 1,5m and 2m.

            3 jaw chuck
            4 jaw chuck
            variable speed, 2 steps
            Newall digital readout
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          polovne tokarilice Središnje struge HUVEMA HU 560 x 1500 VAC NG


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011520 · Center Lathe

          HUVEMA - HU 560 x 1500 VAC NG - - 2020 -

          Technical details
          spindle turning speed - stepless 25 - 1600 U/min︱turning diameter over bed 560 mm︱turning diameter over slide rest 310 mm︱turning length 1500 mm︱spindle bore 80 mm︱turning dia. in gap 780 mm︱metric threading 47 / 0,2 - 14 mm︱thread - inch 60 / 2 - 112 inch.︱thread - module 39 / 0,1 - 7 mm︱Whitworth-thread 60 / 2 - 112 TPI︱adjustment of the upper slide 130 mm︱dia. of quill 75 mm︱quill stroke 180 mm︱bed width 350 mm︱number of feeds 35 ︱longitudinal feeds: 0,056 - 1,646 mm/U︱face slide travel 285 mm︱ Mk 5 ︱total power requirement 7,5 kW︱weight of the machine ca. 2720 kg︱
          A comprehensive range of quality centre lathes characterised by wide versatility, high accuracy and extremely rigid construction. The machines are well equipped with a 2-axis Newall digital readout fitted as standard plus variable speed. Huvema lathes fully conform to CE regulations. Equipment: 3 jaw chuck 4 jaw chuck Newall digital readout European protective cover fixed and travelling steady halogen machine light solid cast iron base
            spindle turning speed - stepless 25 - 1600 U/min
            turning diameter over bed 560 mm
            turning diameter over slide rest 310 mm
            turning length 1500 mm
            spindle bore 80 mm
            turning dia. in gap 780 mm
            metric threading 47 / 0,2 - 14 mm
            thread - inch 60 / 2 - 112 inch.
            thread - module 39 / 0,1 - 7 mm
            Whitworth-thread 60 / 2 - 112 TPI
            adjustment of the upper slide 130 mm
            dia. of quill 75 mm
            quill stroke 180 mm
            bed width 350 mm
            number of feeds 35
            longitudinal feeds: 0,056 - 1,646 mm/U
            face slide travel 285 mm
            Mk 5
            total power requirement 7,5 kW
            weight of the machine ca. 2720 kg
            Description :
            A comprehensive range of quality centre lathes characterised by wide
            versatility, high accuracy and extremely rigid construction. The machines are
            well equipped with a 2-axis Newall digital readout fitted as standard plus
            variable speed. Huvema lathes fully conform to CE regulations.

            Equipment:

            3 jaw chuck
            4 jaw chuck
            Newall digital readout
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          rabljeni tokarilice Središnji strug HUVEMA HU 460 x 1500 NG


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011530 · Center Lathe

          HUVEMA - HU 460 x 1500 NG - - 2020 -

          Technical details
          turning diameter over bed 460 mm︱turning diameter over slide rest 274 mm︱turning length 1500 mm︱spindle bore 58 mm︱spindle turning speed range 25 - 2000 U/min︱turning dia. in gap 690 mm︱metric threading 41 / 0,1 - 14 mm︱thread - inch 60 / 2 - 112 inch.︱thread - module 34 / 0,1 - 7 mm︱Whitworth-thread 60 / 2 - 112 TPI︱adjustment of the upper slide 140 mm︱dia. of quill 60 mm︱quill stroke 120 mm︱total power requirement 5,5 kW︱weight of the machine ca. 1790 t︱dimensions of the machine ca. 2,2 x 1,0 x 1,3 m︱
          A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 jaw chuck 4 jaw chuck Newall digital readout European protective cover fixed and travelling steady halogen machine light solid cast iron base
            turning diameter over bed 460 mm
            turning diameter over slide rest 274 mm
            turning length 1500 mm
            spindle bore 58 mm
            spindle turning speed range 25 - 2000 U/min
            turning dia. in gap 690 mm
            metric threading 41 / 0,1 - 14 mm
            thread - inch 60 / 2 - 112 inch.
            thread - module 34 / 0,1 - 7 mm
            Whitworth-thread 60 / 2 - 112 TPI
            adjustment of the upper slide 140 mm
            dia. of quill 60 mm
            quill stroke 120 mm
            total power requirement 5,5 kW
            weight of the machine ca. 1790 t
            dimensions of the machine ca. 2,2 x 1,0 x 1,3 m
            Description :
            A comprehensive range of quality centre lathes characterised by wide
            versatility,high accuracy and extremely rigid construction. The machines are well equipped
            with a multi-fix quick change tool post and 2-axis Newall digital readout fitted
            as standard and a variable speed option is available. Huvema lathes fully
            conform to CE regulations. Also available in: 1,5m


            3 jaw chuck
            4 jaw chuck
            Newall digital readout
            European protective cover
            fixed and travelling steady
            halogen machine light
            solid cast iron base

          Datasheet
          Request / Contact
          polovne tokarilice Središnje struge HUVEMA C 400 x 1000 TS VAC


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010129 · Center Lathe

          HUVEMA - C 400 x 1000 TS VAC - - 2019 -

          Technical details
          turning diameter over bed 400 mm︱turning diameter over slide rest 235 mm︱turning length 1000 mm︱turning dia. in gap 560 mm︱spindle bore 52 mm︱spindle taper Größe 6, DIN 55029 ︱spindle turning speed - stepless 18 - 2120 U/min︱face feeds 0,0075 - 0,3 ︱feeds - longitudinal 0,015 - 0,6 mm/U︱thread - mm pitch 0.25 - 7,5 mm︱thread - inch 4 - 120 Gang / inch.︱tailstock quill diameter 50 mm︱tailstock quill taper metric MT 4 ︱tailstock quill stroke 120 mm︱max. workpiece weight between centres 500 kg︱voltage 400 V / 50 Hz︱spindle motor 5,5 kW︱total power requirement 7,5 kW︱weight of the machine ca. 1,85 t︱dimensions of the machine ca. 2,9 x 1,2 x 1,5 m︱
          • stepless adjustable turning speed via frequency converter, digital display, 2-axe-DRO, Made:NEWALL
            turning diameter over bed 400 mm
            turning diameter over slide rest 235 mm
            turning length 1000 mm
            turning dia. in gap 560 mm
            spindle bore 52 mm
            spindle taper Größe 6, DIN 55029
            spindle turning speed - stepless 18 - 2120 U/min
            face feeds 0,0075 - 0,3
            feeds - longitudinal 0,015 - 0,6 mm/U
            thread - mm pitch 0.25 - 7,5 mm
            thread - inch 4 - 120 Gang / inch.
            tailstock quill diameter 50 mm
            tailstock quill taper metric MT 4
            tailstock quill stroke 120 mm
            max. workpiece weight between ce. 500 kg
            voltage 400 V / 50 Hz
            spindle motor 5,5 kW
            total power requirement 7,5 kW
            weight of the machine ca. 1,85 t
            dimensions of the machine ca. 2,9 x 1,2 x 1,5 m
            Description :
            • stepless adjustable turning speed via frequency converter, digital display,
            2-axe-DRO, Made:NEWALL
          Datasheet
          Request / Contact
          Rabljeni tokarilice Središnji tokarilica HUVEMA HU 460 x 1000 VAC NG


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010121 · Center Lathe

          HUVEMA - HU 460 x 1000 VAC NG - - 2019 -

          Technical details
          turning diameter over bed 460 mm︱turning diameter over slide rest 274 mm︱turning length 1000 mm︱spindle bore 58 mm︱turning dia. in gap 690 mm︱spindle taper Größe 6, DIN 55029 ︱spindle turning speed - stepless 30 - 2000 U/min︱feeds - longitudinal 0,031 - 1,7 mm/U︱thread - mm pitch 0,1 - 14 mm︱thread - inch 2 - 112 Gang / inch.︱tailstock quill diameter 60 mm︱tailstock quill taper metric MT 4 ︱tailstock quill stroke 120 mm︱max. workpiece weight between centres 500 kg︱voltage 400 V / 50 Hz︱spindle motor 5,5 kW︱total power requirement 6 kW︱weight of the machine ca. 1,8 t︱dimensions of the machine ca. 2,9 x 1,2 x 1,5 m︱
          • stepless adjustable turning speed via frequency converter, digital display, 2-axe-DRO, Made:NEWALL
            turning diameter over bed 460 mm
            turning diameter over slide rest 274 mm
            turning length 1000 mm
            spindle bore 58 mm
            turning dia. in gap 690 mm
            spindle taper Größe 6, DIN 55029
            spindle turning speed - stepless 30 - 2000 U/min
            feeds - longitudinal 0,031 - 1,7 mm/U
            thread - mm pitch 0,1 - 14 mm
            thread - inch 2 - 112 Gang / inch.
            tailstock quill diameter 60 mm
            tailstock quill taper metric MT 4
            tailstock quill stroke 120 mm
            max. workpiece weight between ce. 500 kg
            voltage 400 V / 50 Hz
            spindle motor 5,5 kW
            total power requirement 6 kW
            weight of the machine ca. 1,8 t
            dimensions of the machine ca. 2,9 x 1,2 x 1,5 m
            Description :
            • stepless adjustable turning speed via frequency converter, digital display,
            2-axe-DRO, Made:NEWALL
          Datasheet
          Request / Contact

          lathe-conventional-electronic

          rabljeni tokarski strojevi-konvencionalni-elektronički Huvema HU 800 x 3000


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D650 · lathe-conventional-electronic

          Huvema - HU 800 x 3000 - - 2012 -

          Technical details
          Distance between centers 3000 mm︱Centre height 400 mm︱Swing over bed 800 mm ø︱Swing over support 580 mm ø︱Swing in the gap 1040 mm ø︱Spindle boring 105 mm ø︱3-Jaw chuck 350 mm ø︱Motor 7,5 kW︱
          Quick change holder Digital readout
            Distance between centers 3000 mm
            Centre height 400 mm
            Swing over bed 800 mm ø
            Swing over support 580 mm ø
            Swing in the gap 1040 mm ø
            Spindle boring 105 mm ø
            3-Jaw chuck 350 mm ø
            Motor 7,5 kW
            Description :
            Quick change holder
            Digital readout
          Datasheet
          Request / Contact
          rabljeni tokarski strojevi-konvencionalni-elektronički Huvema HU 460x2000


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D724 · lathe-conventional-electronic

          Huvema - HU 460x2000 - - 2011 -

          Technical details
          Distance between centers 2000 mm︱Centre height 230 mm︱Swing over bed 460 mm ø︱Swing over support 274 mm ø︱Swing in the gap 690 mm ø︱Spindle boring 58 mm ø︱Digital read-out Newall DP700 ︱Revolutions 30 - 2000 RPM︱Motor 5,5 kW︱Machine weight 2220 kg︱
          42 Power supplies
            Distance between centers 2000 mm
            Centre height 230 mm
            Swing over bed 460 mm ø
            Swing over support 274 mm ø
            Swing in the gap 690 mm ø
            Spindle boring 58 mm ø
            Digital read-out Newall DP700
            Revolutions 30 - 2000 RPM
            Motor 5,5 kW
            Machine weight 2220 kg
            Description :
            42 Power supplies
          Datasheet
          Request / Contact
          rabljeni tokarski strojevi-konvencionalni-elektronički Huvema HU 560x1500 VAX NG


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D759 · lathe-conventional-electronic

          Huvema - HU 560x1500 VAX NG - - -

          Technical details
          Distance between centers 1500 mm︱Centre height 280 mm︱Swing over bed 560 mm ø︱Swing over support 325 mm ø︱Swing in the gap 780 mm ø︱Spindle boring 80 mm ø︱Bed width 310 mm︱Steadys 1 ︱Digital read-out Newall DP700 ︱Revolutions 25 - 1600 RPM︱Machine weight 2720 kg︱
          3-jaw plate Displacement tool support: 130 mm Thread cutting metric: 47 / 0.2 - 14 mm Thread cutting Withworth: 60/2 - 112 TPI Diameter pinole: 75 mm Pinole displacement: 180 mm Number of power supplies: 45
            Distance between centers 1500 mm
            Centre height 280 mm
            Swing over bed 560 mm ø
            Swing over support 325 mm ø
            Swing in the gap 780 mm ø
            Spindle boring 80 mm ø
            Bed width 310 mm
            Steadys 1
            Digital read-out Newall DP700
            Revolutions 25 - 1600 RPM
            Machine weight 2720 kg
            Description :
            3-jaw plate
            Displacement tool support: 130 mm
            Thread cutting metric: 47 / 0.2 - 14 mm
            Thread cutting Withworth: 60/2 - 112 TPI
            Diameter pinole: 75 mm
            Pinole displacement: 180 mm
            Number of power supplies: 45
          Datasheet
          Request / Contact

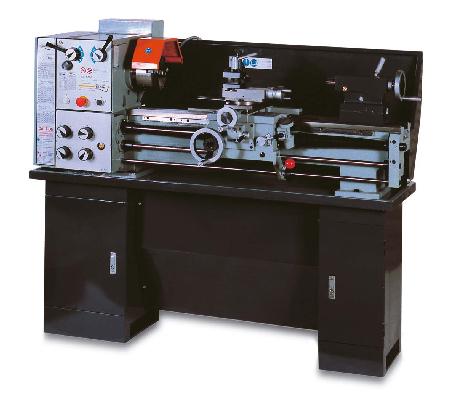

          Mechanician s Lathe

          rabljeni tokarilice s stružnicom HUVEMA HU 1010 B - 4 Sino


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010003 · Mechanician s Lathe

          HUVEMA - HU 1010 B - 4 Sino - - neu -

          Technical details
          turning diameter over bed 330 mm︱turning diameter over slide rest 160 mm︱turning length 1000 mm︱turning dia. in gap 476 mm︱spindle turning speed range 70 - 2000 U/min︱spindle bore 38 mm︱number of feeds 36 Stk︱feed range 0,02 - 2,7 mm/U︱voltage 400 V / 50 Hz︱total power requirement 1,5 kW︱weight of the machine ca. 0,6 t︱dimensions of the machine ca. 1,85 x 0,7 x 1,55 m︱
          • incl. 3 and 4 jaw chuck • fixed and followed steadies • reducing bush MK4 - MK3 • 2 fixed lathe centers • 1 Set of changing wheels • coolant device
            turning diameter over bed 330 mm
            turning diameter over slide rest 160 mm
            turning length 1000 mm
            turning dia. in gap 476 mm
            spindle turning speed range 70 - 2000 U/min
            spindle bore 38 mm
            number of feeds 36 Stk
            feed range 0,02 - 2,7 mm/U
            voltage 400 V / 50 Hz
            total power requirement 1,5 kW
            weight of the machine ca. 0,6 t
            dimensions of the machine ca. 1,85 x 0,7 x 1,55 m
            Description :
            • incl. 3 and 4 jaw chuck
            • fixed and followed steadies
            • reducing bush MK4 - MK3
            • 2 fixed lathe centers
            • 1 Set of changing wheels
            • coolant device
          Datasheet
          Request / Contact
          rabljeni tokarilice s strugom HUVEMA HU 700 Vario


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010000 · Mechanician s Lathe

          HUVEMA - HU 700 Vario - - neu -

          Technical details
          turning diameter over bed 280 mm︱turning diameter over slide rest 170 mm︱turning length 700 mm︱spindle turning speed range 0 - 2500 U/min︱feed range 0,07 - 0,2 mm/U︱voltage 230 V︱total power requirement 1,0 kW︱weight of the machine ca. 0,19 t︱dimensions of the machine ca. 1,390 x 0,700 x 0,630 m︱
          • incl. 3 jaw chuck, 130 mm, • 4 jaw chuck, • followed and fixed steady, • 2 fixed centers, • Set of changing wheels, • with under chassis
            turning diameter over bed 280 mm
            turning diameter over slide rest 170 mm
            turning length 700 mm
            spindle turning speed range 0 - 2500 U/min
            feed range 0,07 - 0,2 mm/U
            voltage 230 V
            total power requirement 1,0 kW
            weight of the machine ca. 0,19 t
            dimensions of the machine ca. 1,390 x 0,700 x 0,630 m
            Description :
            • incl. 3 jaw chuck, 130 mm,
            • 4 jaw chuck,
            • followed and fixed steady,
            • 2 fixed centers,
            • Set of changing wheels,
            • with under chassis
          Datasheet
          Request / Contact
          rabljeni tokarilice s strugom HUVEMA HU 900 A 4 Sino


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011507 · Mechanician s Lathe

          HUVEMA - HU 900 A 4 Sino - - 2020 -

          Technical details
          turning diameter over bed 310 mm︱turning diameter over slide rest 178 mm︱turning length 910 mm︱spindle bore 38 mm︱spindle turning speed range 80 - 2000 (18) U/min︱upper slide-adjustment 100 kW︱longitudinal feeds: 0.052 - 1,392 mm/U︱metrical thread cutting 0,4 - 7 mm︱threading WHITWORTH 58 - 8 TPI︱total power requirement 1,1 kW︱weight of the machine ca. 420 kg︱dimensions of the machine ca. 1,6 x 0,75 x 1,4 m︱
            turning diameter over bed 310 mm
            turning diameter over slide rest 178 mm
            turning length 910 mm
            spindle bore 38 mm
            spindle turning speed range 80 - 2000 (18) U/min
            upper slide-adjustment 100 kW
            longitudinal feeds: 0.052 - 1,392 mm/U
            metrical thread cutting 0,4 - 7 mm
            threading WHITWORTH 58 - 8 TPI
            total power requirement 1,1 kW
            weight of the machine ca. 420 kg
            dimensions of the machine ca. 1,6 x 0,75 x 1,4 m
          Datasheet
          Request / Contact
          rabljeni Tokarilice s strugom HUVEMA HU 660 C-2


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-011508 · Mechanician s Lathe

          HUVEMA - HU 660 C-2 - - 2020 -

          Technical details
          turning diameter over bed 310 mm︱turning diameter over slide rest 178 mm︱turning length 910 mm︱spindle bore 38 mm︱upper slide-adjustment 100 kW︱longitudinal feeds: 0.052 - 1,392 mm/U︱metrical thread cutting 0,4 - 7 mm︱threading WHITWORTH 58 - 8 TPI︱spindle turning speed - stepless 80 - 2000 U/min︱total power requirement 1,1 kW︱weight of the machine ca. 420 kg︱dimensions of the machine ca. 1,6 x 0,75 x 1,4 m︱
            turning diameter over bed 310 mm
            turning diameter over slide rest 178 mm
            turning length 910 mm
            spindle bore 38 mm
            upper slide-adjustment 100 kW
            longitudinal feeds: 0.052 - 1,392 mm/U
            metrical thread cutting 0,4 - 7 mm
            threading WHITWORTH 58 - 8 TPI
            spindle turning speed - stepless 80 - 2000 U/min
            total power requirement 1,1 kW
            weight of the machine ca. 420 kg
            dimensions of the machine ca. 1,6 x 0,75 x 1,4 m
          Datasheet
          Request / Contact
          rabljeni Strojevi za tokarilice s tokarilicom HUVEMA HU 360x1000 VAC Topline


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010108 · Mechanician s Lathe

          HUVEMA - HU 360x1000 VAC Topline - - 2019 -

          Technical details
          turning diameter over bed 360 mm︱turning diameter over slide rest 220 mm︱turning length 1000 mm︱turning dia. in gap 515 mm︱spindle bore 38 mm︱spindle turning speed range 30 - 2200 U/min︱feeds - longitudinal 0,067 - 1,485 mm/U︱feeds - cross 0,033 - 0,742 mm/U︱voltage 400 V / 50 Hz︱total power requirement 2,5 kW︱weight of the machine ca. 0,75 t︱dimensions of the machine ca. 2,3 x 1,0 x 1,5 m︱
          • with 3- and 4- jaw chuck, • 2 axis-digital display NEWALL, • fixed and live steady, • Machine light.
            turning diameter over bed 360 mm
            turning diameter over slide rest 220 mm
            turning length 1000 mm
            turning dia. in gap 515 mm
            spindle bore 38 mm
            spindle turning speed range 30 - 2200 U/min
            feeds - longitudinal 0,067 - 1,485 mm/U
            feeds - cross 0,033 - 0,742 mm/U
            voltage 400 V / 50 Hz
            total power requirement 2,5 kW
            weight of the machine ca. 0,75 t
            dimensions of the machine ca. 2,3 x 1,0 x 1,5 m
            Description :
            • with 3- and 4- jaw chuck,
            • 2 axis-digital display NEWALL,
            • fixed and live steady,
            • Machine light.
          Datasheet
          Request / Contact
          rabljeni tokarilice s strojnim strojem HUVEMA BL 310x900 Vario


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010125 · Mechanician s Lathe

          HUVEMA - BL 310x900 Vario - - 2019 -

          Technical details
          turning diameter over bed 310 mm︱turning diameter over slide rest 178 mm︱turning length 910 mm︱turning dia. in gap 420 mm︱spindle turning speed range 70 - 2000 U/min︱spindle bore 38 mm︱number of feeds 18 Stk︱feed range 0,052 - 1,392 mm/U︱metrical thread cutting 0,4 - 7 mm︱voltage 230 / 50 V Hz︱total power requirement 1,1 kW︱weight of the machine ca. 0,45 t︱dimensions of the machine ca. 1,6 x 0,8 x 1,4 m︱
          • incl. 3 and 4 jaw chuck • fixed and followed steadies • reducing bush MK4 - MK3 • 2 fixed lathe centers • 1 Set of changing wheels • coolant device
            turning diameter over bed 310 mm
            turning diameter over slide rest 178 mm
            turning length 910 mm
            turning dia. in gap 420 mm
            spindle turning speed range 70 - 2000 U/min
            spindle bore 38 mm
            number of feeds 18 Stk
            feed range 0,052 - 1,392 mm/U
            metrical thread cutting 0,4 - 7 mm
            voltage 230 / 50 V Hz
            total power requirement 1,1 kW
            weight of the machine ca. 0,45 t
            dimensions of the machine ca. 1,6 x 0,8 x 1,4 m
            Description :
            • incl. 3 and 4 jaw chuck
            • fixed and followed steadies
            • reducing bush MK4 - MK3
            • 2 fixed lathe centers
            • 1 Set of changing wheels
            • coolant device
          Datasheet
          Request / Contact
          rabljeni Tokarilice s strugom HUVEMA HU 900 A-4


          • Feyen Maschinen GmbH
          • Gelleperstr. 10
          • 47809 Krefeld
          • Deutschland

          • 0049 (0)2151/5267-0
            0049 (0)2151/5267-39
          • info@feyen.de
            www.feyen.de
          #1053-010002 · Mechanician s Lathe

          HUVEMA - HU 900 A-4 - - 2018 -

          Technical details
          turning diameter over bed 310 mm︱turning diameter over slide rest 178 mm︱turning length 910 mm︱spindle turning speed range 80 - 2000 U/min︱spindle cone MT5 -CAMLOK D1 DIN 55029︱spindle bore 38 mm︱number of feeds 32 Stk︱feeds 0,052 - 1,392 mm/U︱thread - mm pitch 0,4 -7 mm︱thread - inch 56 - 8 Gang/ inch.︱voltage 400 V / 50 Hz︱engine output 1,1 kW︱weight of the machine ca. 0,45 t︱dimensions of the machine ca. 1,6 x 0,75 x 1,4 m︱
          • incl. 3 and 4 jaw chuck • fixed and followed steadies • reducing bush MK4 - MK3 • 2 fixed lathe centers • 1 Set of changing wheels
            turning diameter over bed 310 mm
            turning diameter over slide rest 178 mm
            turning length 910 mm
            spindle turning speed range 80 - 2000 U/min
            spindle cone MT5 -CAMLOK D1 DIN 55029
            spindle bore 38 mm
            number of feeds 32 Stk
            feeds 0,052 - 1,392 mm/U
            thread - mm pitch 0,4 -7 mm
            thread - inch 56 - 8 Gang/ inch.
            voltage 400 V / 50 Hz
            engine output 1,1 kW
            weight of the machine ca. 0,45 t
            dimensions of the machine ca. 1,6 x 0,75 x 1,4 m
            Description :
            • incl. 3 and 4 jaw chuck
            • fixed and followed steadies
            • reducing bush MK4 - MK3
            • 2 fixed lathe centers
            • 1 Set of changing wheels
          Datasheet
          Request / Contact


          Find the best used lathes and more at LagerMaschinen
          Lathes offer versatility and efficiency to your workshop

          Lathes have stood the test of time as some of the most efficient and multi-functional tools. They can be used on a wide variety of material surfaces and can serve a huge number of functions. Whether you need a small lathe for home use or an industrial size lathe for large-scale production, you can find the perfect piece of used equipment to suit your needs at LagerMaschinen. Visit this easy-to-use forum to find the best used machinery for your needs.

          LagerMaschinen - your home for used machines

          Lathes are critical pieces of equipment in a wide variety of sectors. A lathe is capable of grinding, cutting and finishing tiny parts for watch- and jewellery-making, as well as large-scale pieces for automobiles and airplanes. Whether you prefer the control offered by a manually operated lathe or the precision and efficiency of a computer numerical controlled (CNC) lathe, you can find a huge selection at LagerMaschinen, your best source for used machinery.

          Buying used machines is a smart investment

          Smart shoppers know that you dont have to sacrifice quality for affordability when buying machinery for your home or business. Buying used machines is a great way to get the quality you need without straining your budget. If youre in the market for lathes, saws, grinders or any other equipment, you can find a great selection of used machines at LagerMaschinen. Sort results by price, location or brand and find the best used machines around.
